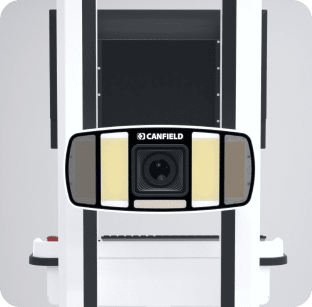

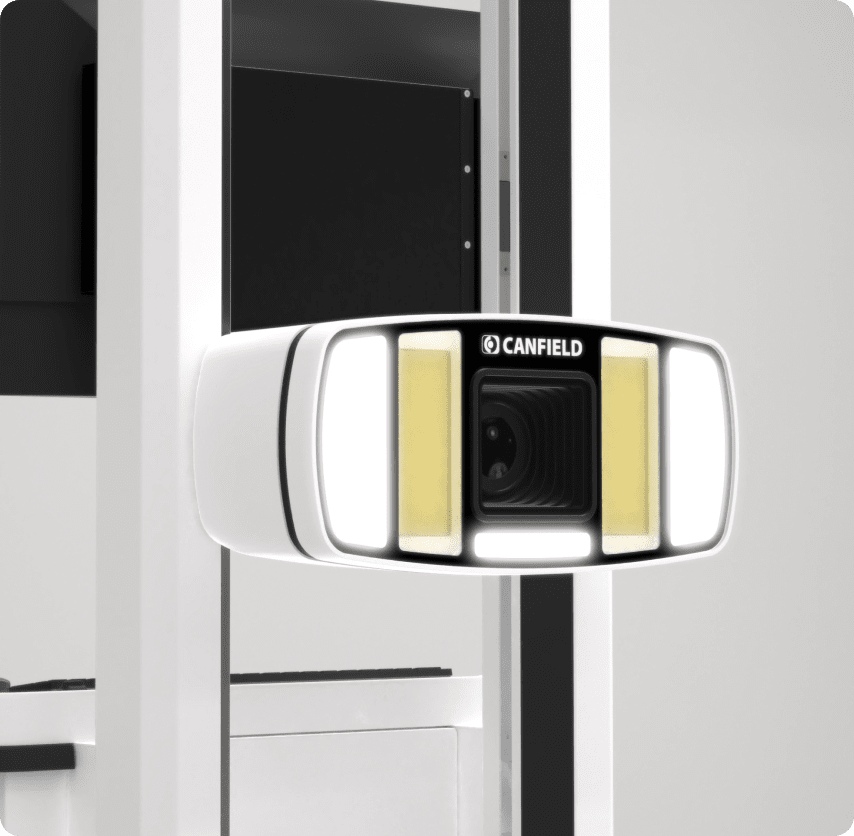

Video Capabilities
IntelliStudio offers integrated video capabilities with LED lighting, including record, playback, and zoom capabilities.

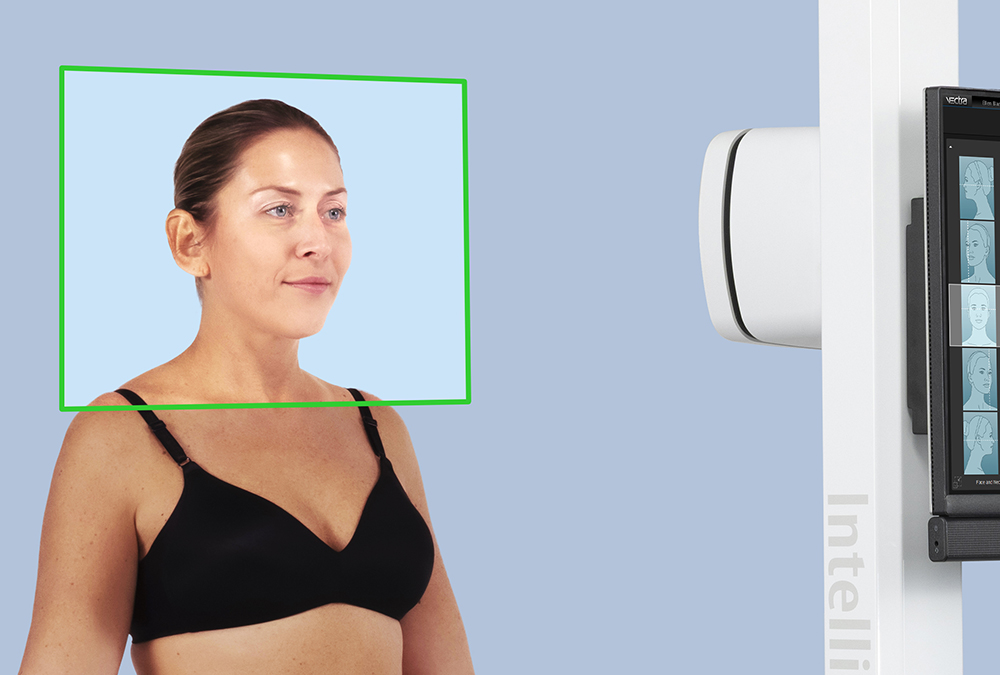

Facial Detection
Facial Detection algorithms ensure that the patient's face is automatically recognized, setting the camera height for quick and standardized patient positioning.
Automated Guided Capture
IntelliStudio's standardized capture templates streamline acquiring consistent image sets for intended procedures.

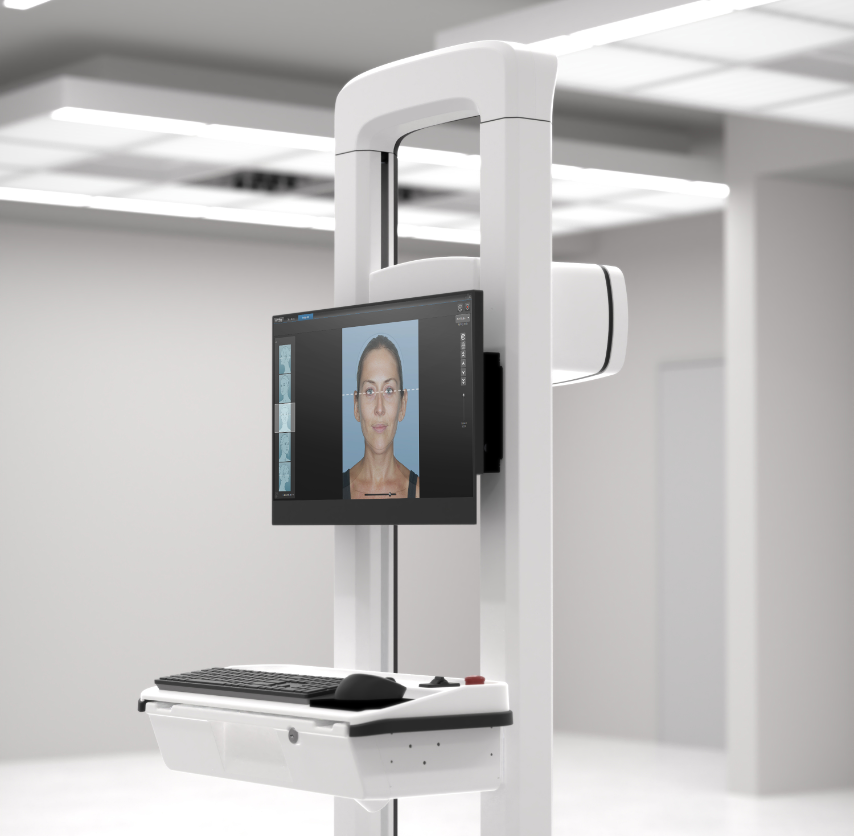

On-screen diagrams guide patient poses for the baseline image set, and Canfield's MatchPose assures perfectly registered follow-ups.
Camera orientation, zoom, and flashes are automatically controlled by the selected template.
Viewing Modes
Studio-quality lighting is calibrated and balanced for skin imaging.
Cross-polarized lighting eliminates surface reflection for better visualization of subsurface information.
RBX® Red enhances visualization of vascularity.
RBX Brown enhances visualization of pigmentation.
Gray mode removes the distraction of complexion details for superior visualization of facial contours.
IntelliStudio
What Our
Skin Concept
Munich, Germany
Tech Specs &
IntelliStudio
- 100-120V AC, 50/60 Hz, 10.0A or
- 220-240V AC, 50/60 Hz, 10.0A
- Class I Laser
- IEC 60825-1:2014
- Max output of laser radiation is less than 10mW
- Configured and supplied by Canfield. Computers from other suppliers are not supported.
- Operating system
- Windows 11 Professional 64 bit
- NOT SUPPORTED: Windows Home Edition
- Processor: Intel Core i7 (12th Gen or higher recommended)
- System memory (RAM): 16 GB or higher
- Minimum 2 GB available disk space for installing application
- Minimum 1 TB available disk space recommended for data
- Graphics card
- 4 GB dedicated memory minimum (or higher)
- Dedicated nVidia or AMD cards (nVidia Highly Recommended)
- Driver: latest available
- 3.0 or later Open GL
- USB Ports: 2 dedicated ports (USB 2.0)
- Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum
- Microsoft Security Essentials anti-virus software recommended
- Wired printers (recommended for speed)
- 1 Gbps Ethernet connection for networking - Wifi not supported
- IntelliStudio® Capture Module
- Mirror® PhotoFile®
- Mirror® PhotoTools
- Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router
- Requires iPad capable of running the current version of iOS
- Mirror desktop software running on Windows OS is required to support Mirror iPad app database
- Windows Server 2019 64-bit or 2022 64-bit
- Microsoft SQL Server 2019 or 2022 (Express edition is installed by default)
- 2.2 GHz or faster processor
- 16GB system memory (RAM)
- 1 Gbps wired LAN connectivity (Wi-Fi not supported)
- 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.
- RAID 1 - NOT SUPPORTED
- Regularly scheduled backups are highly recommended.
- We do not support using a server class OS as a workstation.
- WAN Connectivity is NOT supported
- Workstation based cloud licensing
- A minimum of 1 Gbps network speed is required to access the storage location of the live copy of the data (10 Gbps recommended). Wi-Fi is not supported for workstation connectivity
- Maximum 25ms latency required to the storage location of the live copy of the data
- Anti-virus exceptions must be put in place to avoid any latency
- SSD Storage is highly recommended
- Cloud storage (Azure, AWS, Google Cloud, Etc.) is not supported for storing data, but can be used for backup purposes
- RAID 1 is not supported
- The Machines/PC/Server where the Canfield services are running must have a static IP address
- In a networked environment, the services(s) need to run with a dedicated service account where the password does not expire, and it has access to the DB and the images folder
CANFIELD CARE®
- Unlimited expert technical assistance
- Remote diagnostic service
- Advanced hardware exchange
- Marketing support
- Remote training
- Unlimited Webinars ($250 value per webinar)
- ViewMyConsult® client portal
- Extended Canfield Care is available
- On-site training: Additional on-site training by Canfield experts is available.
- Contact Canfield or your Canfield Authorized Distributor for pricing and additional information.
